Multi-side Clear Span Tent

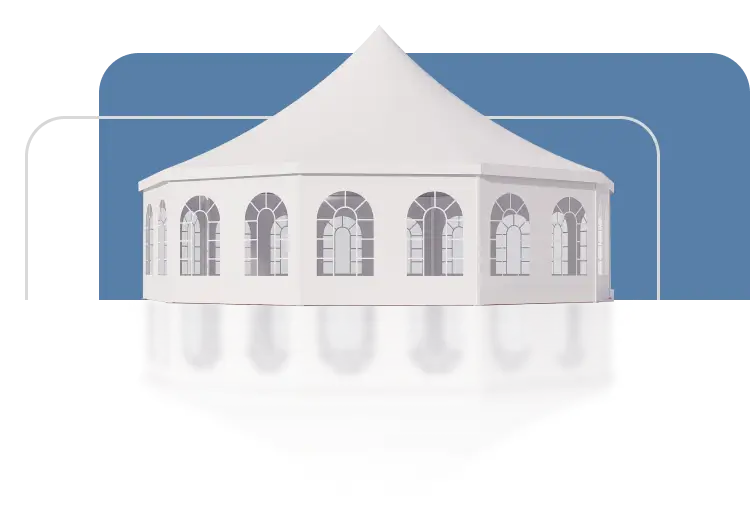

Multi-side clear span tent has a unique appearance and excellent interior space design. The tent has a spire roof and polygonal design, which can have six sides, eight sides, ten sides and more, bringing a different visual experience.
The interior space does not require additional internal column support, creating a completely open interior environment. Whether it is a majestic exhibition space, an elegant banquet hall, or a fully functional conference center, a clear span tent can provide a matching space.
icon11
The unique aesthetic charm and excellent functionality can enhance the activity level and adjust according to different needs. Choose a multi-side clear span tent to add a touch of color to your business and party activities.
icon22

Features of Multi-side Clear Span Tent

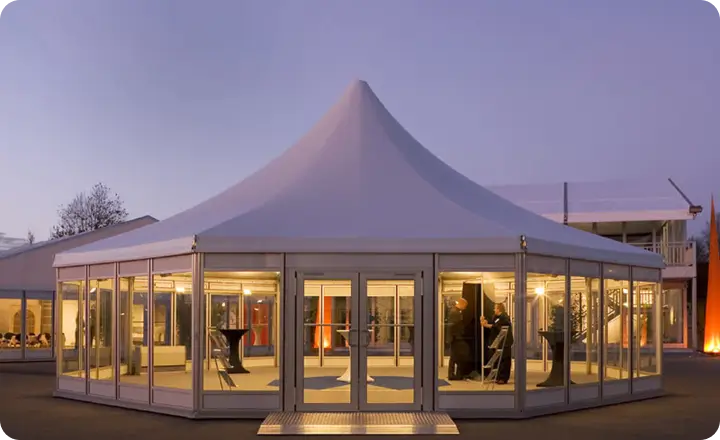

Customized Design
Customize the doors, walls and other options according to different activities. If you need to hold a wedding, you can customize the color of the tarpaulin or choose transparent and beautiful walls. If you want a high-end business event, you can customize the brand name in the tent fabric to promote your event and attract attention.

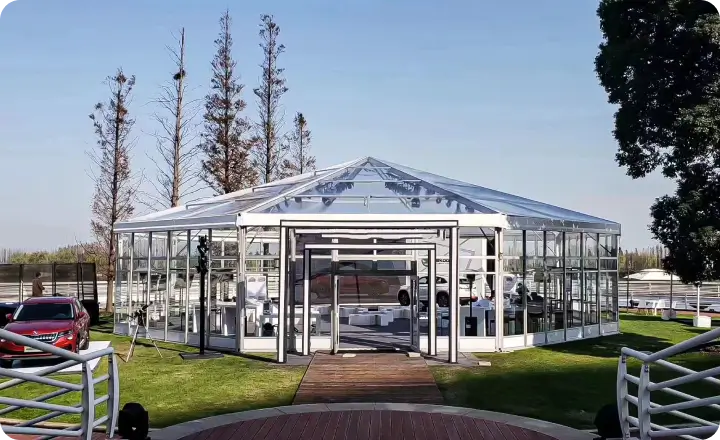

Weather Resistance
The clear span tent can withstand all weather conditions. It is temperature resistant from -30°C to +70°C and has a maximum wind load of 120 km/h and snow load of 0.55KN/㎡.
Different frames can be customized based on the assessment of local working conditions. Its PVC tarpaulin also has an anti-UV coating. Therefore, the clear span tent can be used in any season.

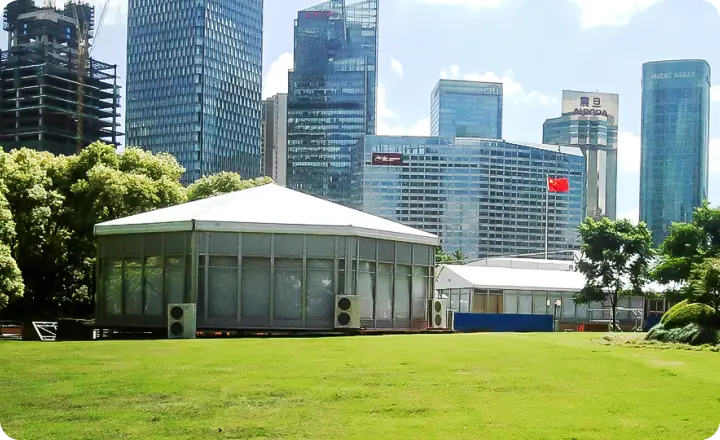

Internal Column-free Space
The high-strength aluminum alloy supports the frame and frees the internal space of additional internal column support. It greatly improves the efficiency of space use and makes the layout and planning of activities more flexible.
Event organizers can design the stage, auditorium, display area, etc., more freely, and it is also convenient to install and set up various temporary facilities such as lighting, sound, display racks, etc. It further improves the flexibility and adaptability of space.

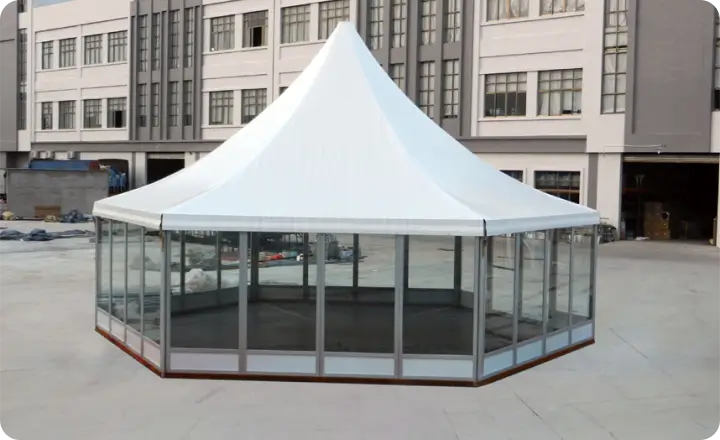

Long-Term Use
The life of PVC tarpaulin is up to 5 years, transparent PVC tarpaulin for 3 years and aluminum alloy frame for 20 years.
So, multi-side clear span ten can be used for a long time. Daily maintenance, cleaning before storage, and timely replacement of damaged parts can help extend the service life of the tent.

Application of Multi-side Clear Span Tent

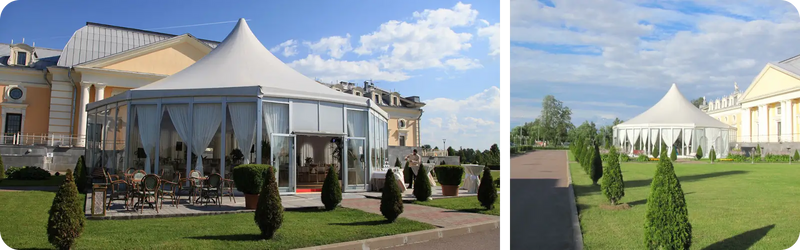

Wedding Venue

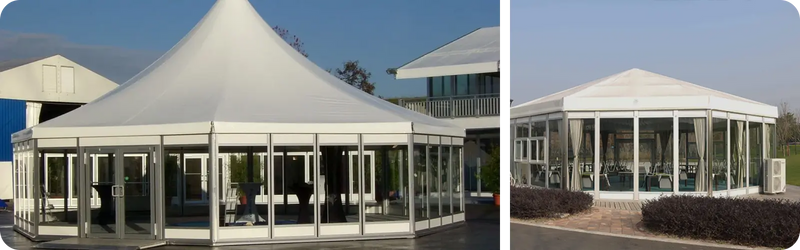

Outdoor Celebrations

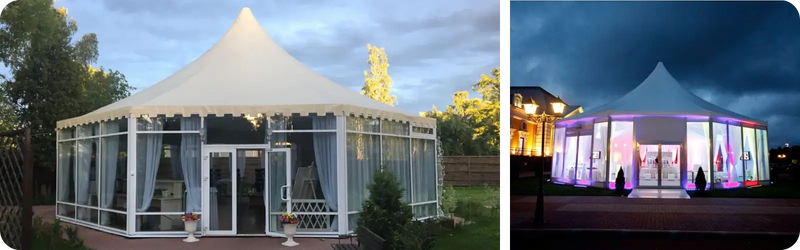

Commercial Exhibition
At a wedding, the clear span tent can be decorated dreamlike. Gorgeous chandeliers, delicate garlands and twinkling lights can all be perfectly displayed in the pillar-free open space. The tent's multi-sided design gives it a unique look, highlighting it in wedding photos.
This tent looks modern, and its transparent design allows the natural beauty to become part of the celebration. The open interior space allows for flexible stage arrangement, seating and decorations depending on the theme and scale of the event.
The interior space is spacious and can accommodate large exhibition stands. External billboards can be hung, or the company brand can be printed on tarpaulins. Interactive experience areas can be set up to provide customers with a sheltered environment. Suitable for temporary exhibitions, easy to set up and dismantle.

Multi-side Clear Span Tents Specifications

Materials
Accessories
6061-T6 Aluminum Alloy Frame
Q235 Steel Component
PVC Fabric
High Safety

The multi-side clear span tent uses hard-pressed extruded structural aluminum 6061-T6. Through solid solution treatment and aging processes, the yield strength and tensile strength of the alloy are significantly improved. The strength is moderate, which ensures a certain carrying capacity without being too bulky.

Maximum Eaves Height 10m

The maximum eaves height of the tent is designed to be 10 meters, which provides an open visual effect for the interior space and provides sufficient space for various activities.

Waterproof

The tent adopts PVC tarpaulin. Its surface is smooth and has excellent waterproof performance. The roof is designed as a spire structure to avoid the accumulation of rainwater on the surface of the tarpaulin.

Roof Options
  • 850GSM Opaque PVC
  • 950GSM Transparent PVC
Wall Options
  • 650GSM Translucent PVC
  • 950GSM Transparent PVC
  • Transparent Glass Wall (Horizontal/Vertical)
  • ABS Panel
  • Sandwich Panel
  • Steel Cladding
Door Options
  • PVC Door with Zipper
  • PVC Door with Rope
  • Single Door (Aluminum/Glass)
  • Sliding Door
  • Rolling Door
  • Double Door (Aluminum/Glass)
  • Clamshell Door
Window Options
  • PVC French Window
  • Sliding Window
Other Accessories
  • Cassette Floor
  • Air Conditioner
  • Insulation
Size
Span (mm) Eave Height (m) Ridge Height (m) Longest Part (m)
10 3.0 6.40 5.30
13 3.0 7.35 6.98
16 4.0 9.45 8.65
20 4.0 9.67 10.69
22 4.0 10.12 10.69
25 4.0 10.46 10.69
30 4.0 12.00 10.61
40 4.0 13.92 10.61

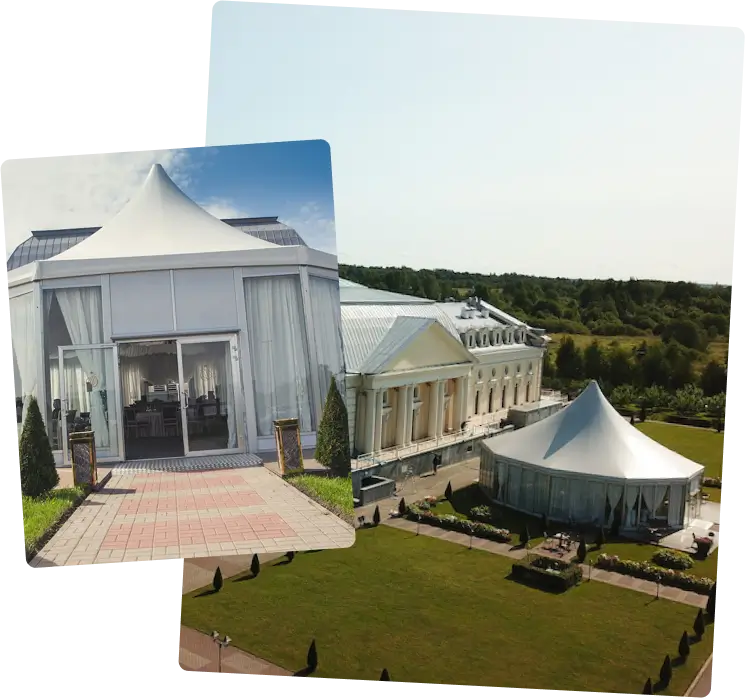

Why Choose Sheltent's Multi-side Clear Span Tents?
As a tent solution service provider, Sheltent has three advanced production centers with an astonishing 20,000 square meters total. Modern equipment and efficient production processes ensure that products can be delivered to customers quickly. We introduced CNC technology to achieve automated manufacturing processing for aluminum alloy and PVC tarpaulin. This process eliminates errors caused by human operation and ensures high precision and processing efficiency. It ensures high product quality and shortens production time.
Sheltent's products are exported to more than 65 countries and regions and can adapt to various environmental conditions, whether it is tropical rainforests, desert areas or extremely cold areas. No matter where you are, Sheltent can deliver the product quickly and conveniently.

Frequently Asked Questions

1/How Long Does it Take to Set Up a Multi-side Clear Span Tent?
Installation time will vary depending on the size and accessories. For example, it takes a team of 4-8 people to install a 10-meter span multi-side clear span tent. Installation can be completed within one to two days. Please contact customer service for details.
2/Is the Multi-side Clear Span Tent Fire Retardant?
The fire protection standards of our tents are DIN 4102 B1, M2, USA NFPA701. B1 and M2 are widely recognized fire protection standards in Germany and Europe, which means that tent materials can effectively slow down the spread of fire in a fire while reducing the generation of smoke and toxic gases.
3/Is the Multi-side Clear Span Tent Mildew-proof?
The PVC material has a smooth surface and does not absorb moisture easily, reducing mold growth conditions. At the same time, the tarpaulin has undergone additional anti-mold treatment to ensure the tent can maintain good condition even in wet or high-humidity environments.
