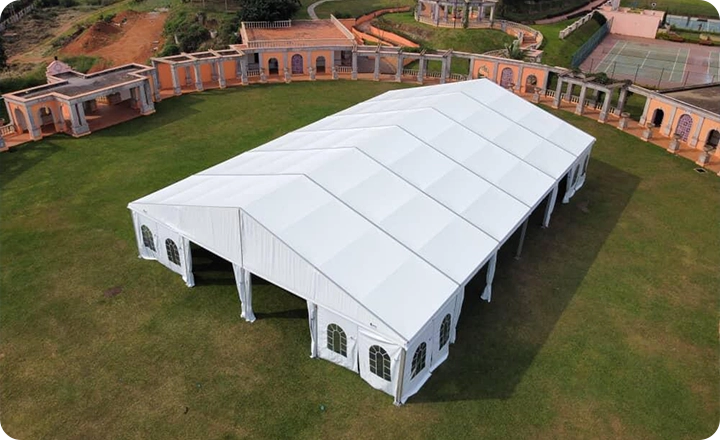

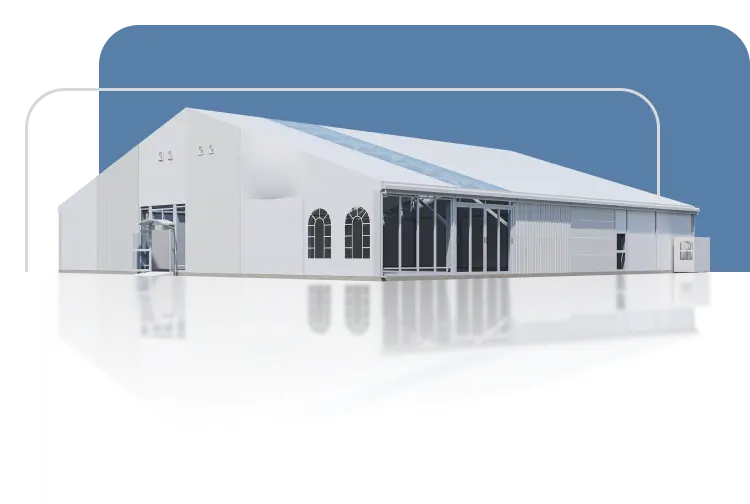

A-frame Clear Span Tent

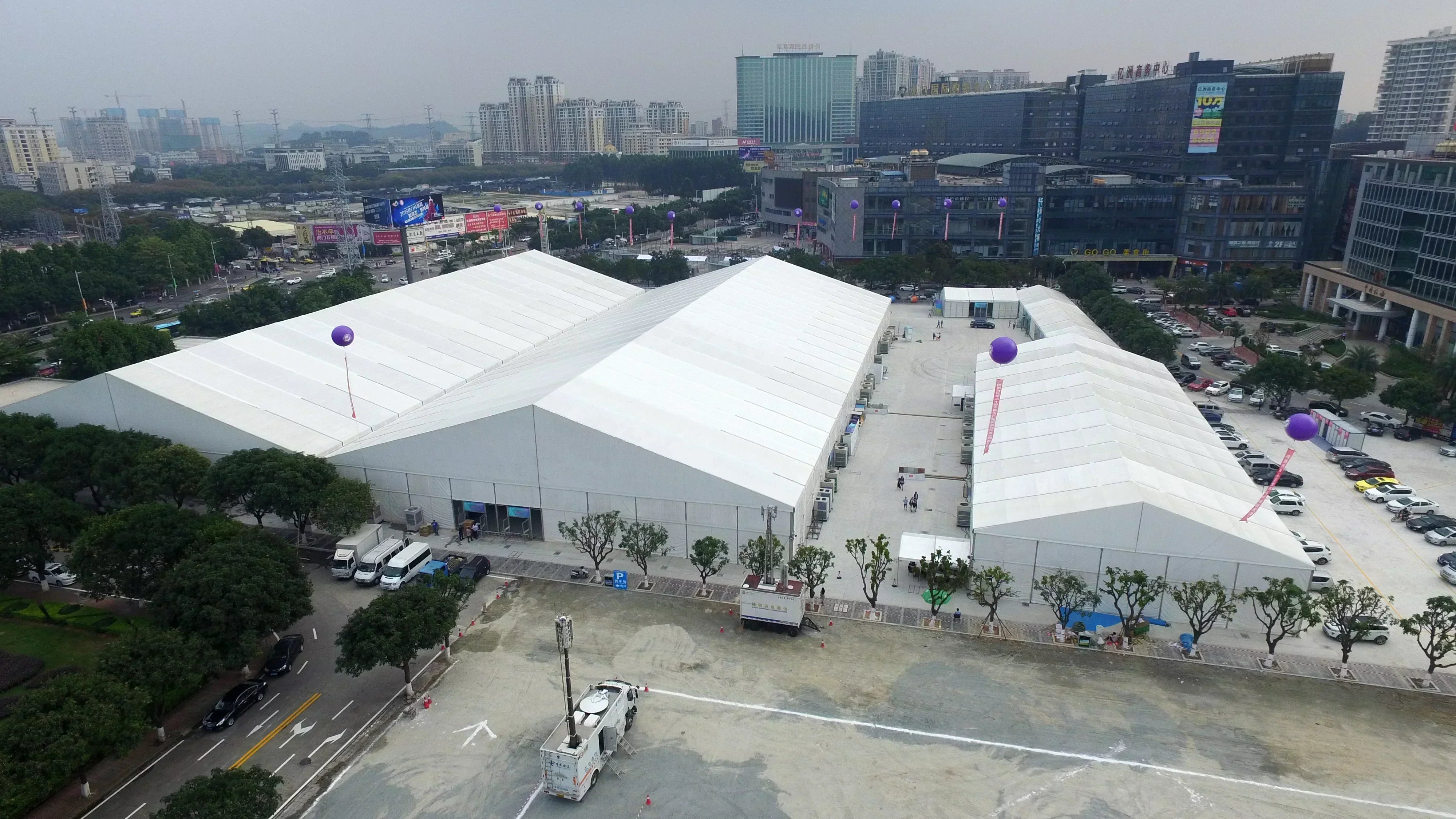

The A-frame clear span tent is a remarkable choice for storage and various events. Its distinctive A-shaped design not only adds a touch of architectural elegance but also provides superior structural stability. Available in various sizes, this tent provides a perfect space solution for you.
icon11
Classic look and excellent space solution. Our A-frame clear span tent is versatile enough to be your warehouse, event venue, and business catalyst.
icon22

Features of A-frame Clear Span Tent

Unique A-Shaped Design
Easy Setup and Installation
100% Utilizable Space
Cost-Effective
Unique A-Shaped Design
The A-frame clear span tent features an A-shaped roof. This special design makes the tent an eye-catcher with its simple and sharp appearance. It also effectively distributes weight and withstands external pressures, giving the tent a stronger load capacity.

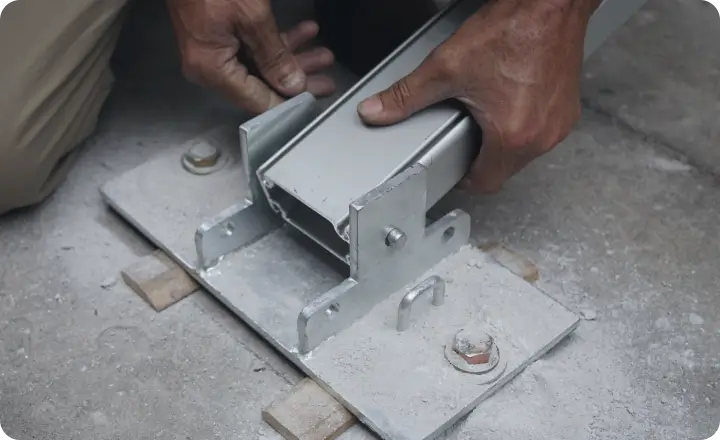

Easy Setup and Installation
Don't worry about setting up a large tent structure. Our A-frame clear span tent is prefabricated in our factory and consists of modular components. A simple installation on-site can complete the setup of your perfect clear span tent.

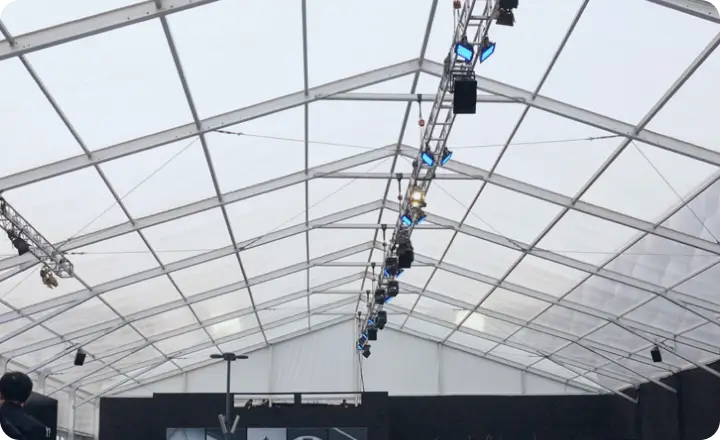

100% Utilizable Space
With a pole-free interior, our A-frame clear span tent provides a spacious and accessible area for flexible arrangement and use. You can plan the space layout as you want without any restrictions.

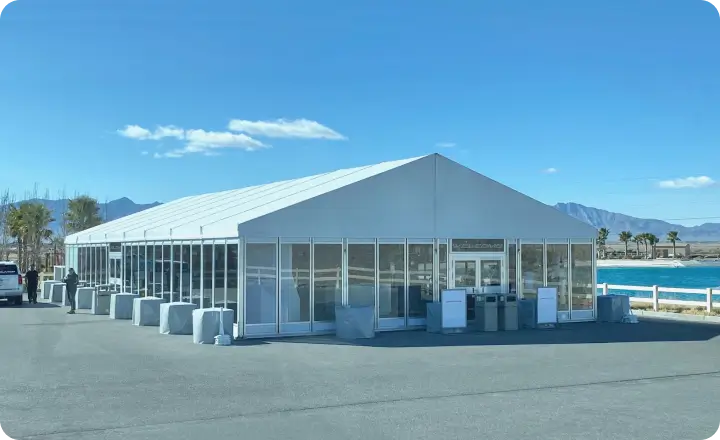

Cost-Effective
As a classic hot-selling product, our A-frame clear span tent offers spacious venue space and high performance at a much lower price. It also frees you from maintenance stress and reduces maintenance costs because of its good durability.

Application of A-frame Clear Span Tent

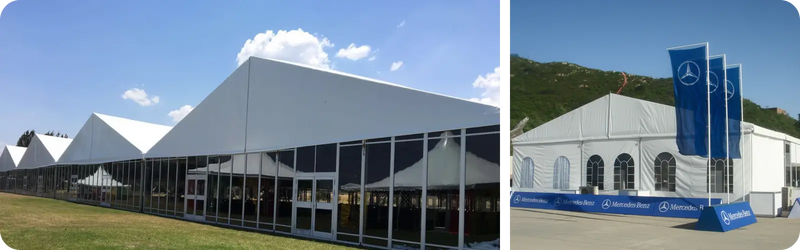

Company Activities
Temporary Warehouse
Long-Term Storage
Our A-frame clear span tent is minimalist and premium. In such an elegant and spacious space, it's only natural to enhance your brand's image. With A-frame tents of various sizes, you can invite hundreds of guests to take part in your company gathering or brand promotion.

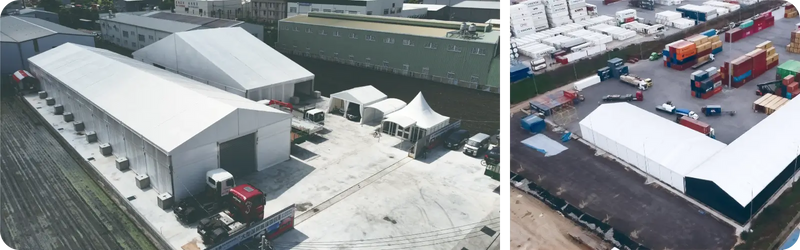

Turn your attention from expensive traditional buildings to affordable A-frame clear span tents! With a modular design, our tent can be quickly set up and taken down for emergency situations. Spacious, highly utilized, and cost-effective, our A-frame tents are a perfect choice for your temporary storage.

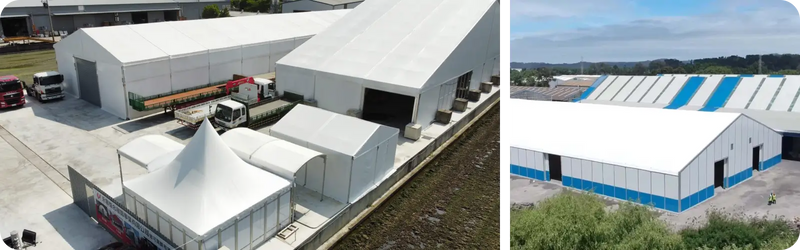

Our A-frame tent is also perfect for long-term storage. Sheltent specializes in the development and innovation of tent structures and materials, using the best-performing materials to produce tents. Waterproof, steady, and fire-resistant, the A-frame clear span tent provides a trusted shelter for your agricultural products, industrial materials or any important goods.

A-frame Clear Span Tents Specifications

Materials
Accessories
6061-T6 Aluminum Alloy Frame
Q235 Steel Component
PVC Fabric
Sturdy Framework

Made with a sturdy aluminum alloy frame and galvanized steel fasteners, our A-frame clear span tent provides strong protection in any situation. It can withstand up to 120km/h wind load and prevent inclement weather.

70m Max Width

Our A-frame clear span tent is available in widths up to 70 meters and any length. This allows you to customize a tent large enough to accommodate guests or goods.

Flame Resistance

The PVC fabric is coated to be effectively flame-retardant. It achieves a B1 flame retardant level and follows DIN 4102-1 standards for a high degree of safety.

Roof Options
  • 850GSM Opaque PVC
  • 950GSM Transparent PVC
Wall Options
  • 650GSM Translucent PVC
  • 950GSM Transparent PVC
  • Transparent Glass Wall (Horizontal/Vertical)
  • ABS Panel
  • Sandwich Panel, Steel Cladding
Door Options
  • PVC Door with Zipper
  • PVC Door with Rope
  • Single Door (Aluminum/Glass)
  • Double Door (Aluminum/Glass)
  • Sliding Door
  • Rolling Door
  • Clamshell Door
Window Options
  • PVC French Window
  • Sliding Window
Other Accessories
  • Cassette Floor
  • Air Conditioner
  • Insulation
Size
Span (m) Eave Height (m) Ridge Height (m)
10 4.0 5.60
12 4.0 5.88
15 4.0 6.40
16 4.0 6.55
20 4.0 7.25
25 4.0 7.96
30 4.0 9.0
35 4.0 9.8
40 4.0 10.40
50 4.0 12.25

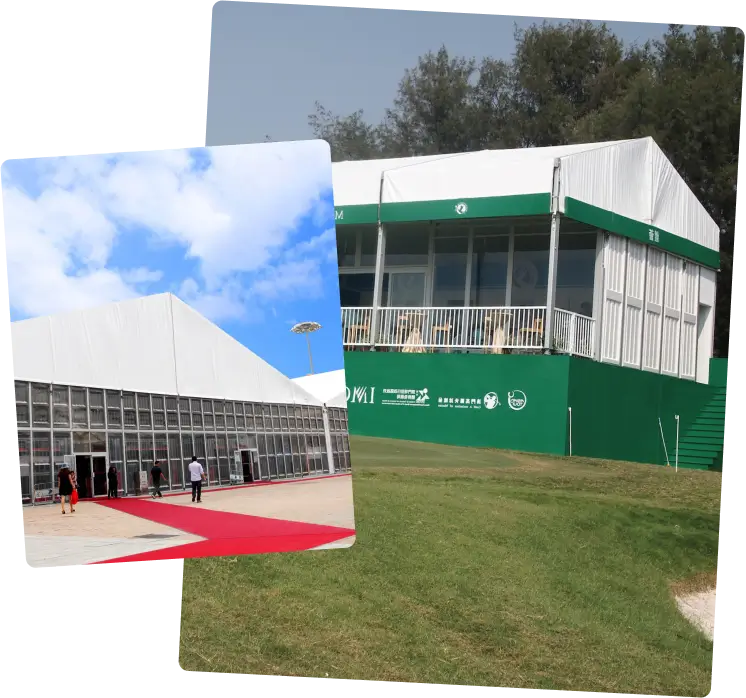

Why Choose Sheltent's A-frame Clear Span Tents?
SHELTENT, as the tent's leading manufacturer, does not simply sell products but provides you with the most professional services. We are committed to providing top-quality A-frame clear span tents at cheaper prices to meet your needs. With fast shipping and easy setup, we make sure that you can put your tent to use in the shortest time possible.
In addition, we offer flexible customization services to design the tent for your event or business. If there is any problem in the process of purchase or use, we will serve you 24 hours online. Choose Sheltent, and we will make sure you have the most satisfying purchase experience.

Frequently Asked Questions

1/What Customized Services does Sheltent Offer?
icon
Sheltent offers various customized options for your A-frame clear span tent. This allows you to have your ideal tent with a distinctive size, cover color, or accessories.
2/Can A-frame Clear Span Tents Be Reused?
icon
Of course. Designed with modular components, our A-frame clear span tent can be easily assembled and disassembled. So you have the flexibility to take down a tent, then transport and use it for your next project.
3/How Much Is an A-frame Clear Span Tent?
icon
With 3 large manufacturing centers, we will provide you with the most affordable tents for your business. If you want to know the exact price of different sizes of A-frame clear span tents, please contact our team for a detailed estimate.

Blog posts

View all

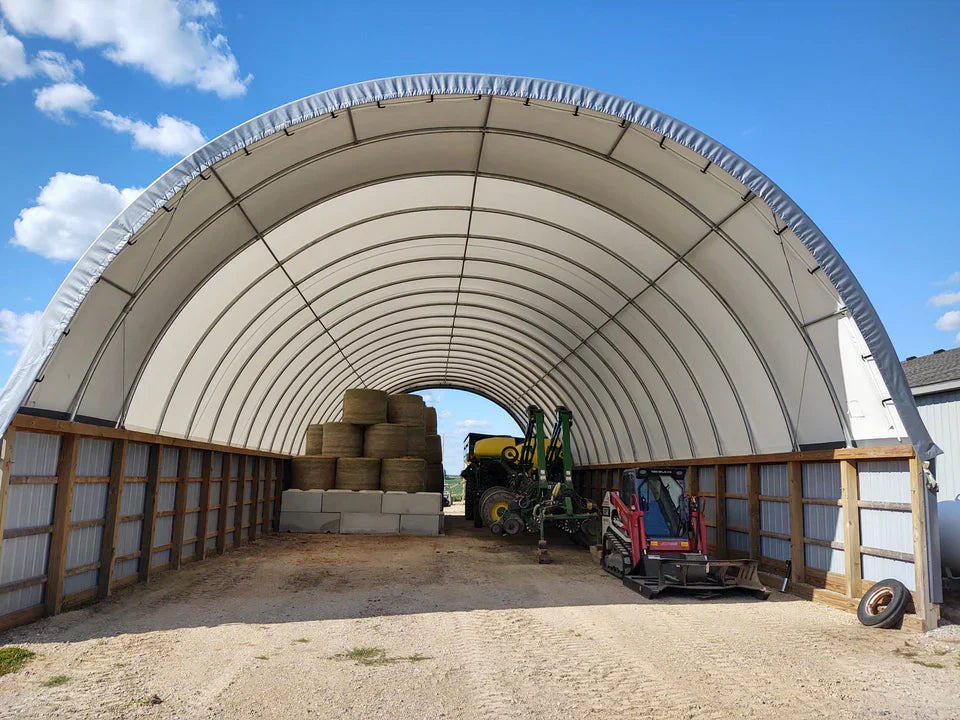

  • Hoop Building Review

    Hoop Buildings Review: Functionality, Pros, Cons, FAQs

    Logo
    SHELTENT

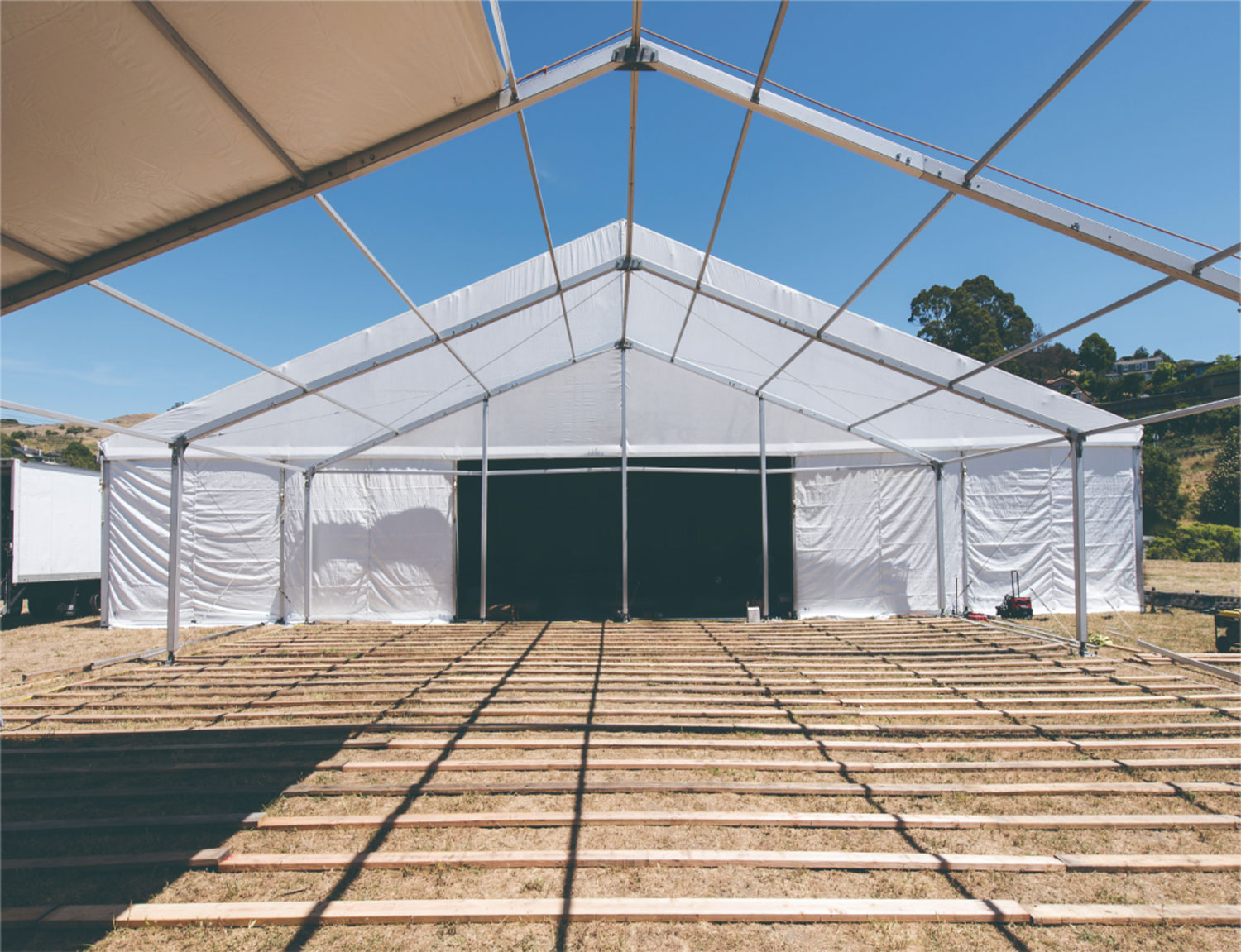

  • Clear Span Tent
